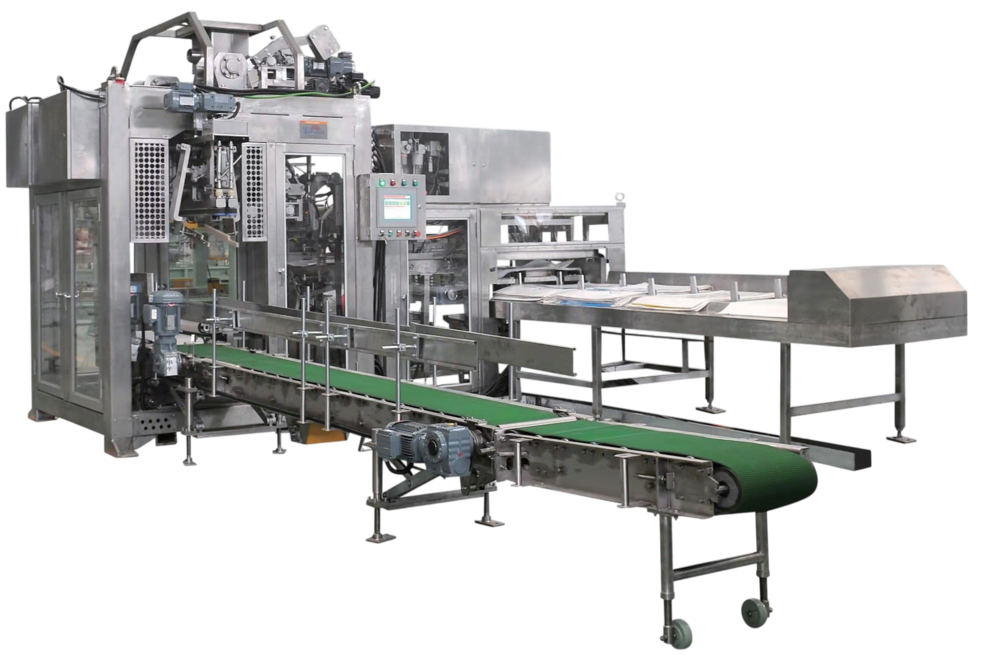

GXB-1000
✔Power: 12KW
✔Air consumption: 175Nm³/hour
✔Packing weight: 20-50kg/bag
✔Working capacity: 600-1200bag/hour
✔Bag size: W (400-600) mm × H(700-1100)mm
✔Bag material: Kraft, PE bag (T=0.18-0.25mm), Gusset bag
Woven bag with film

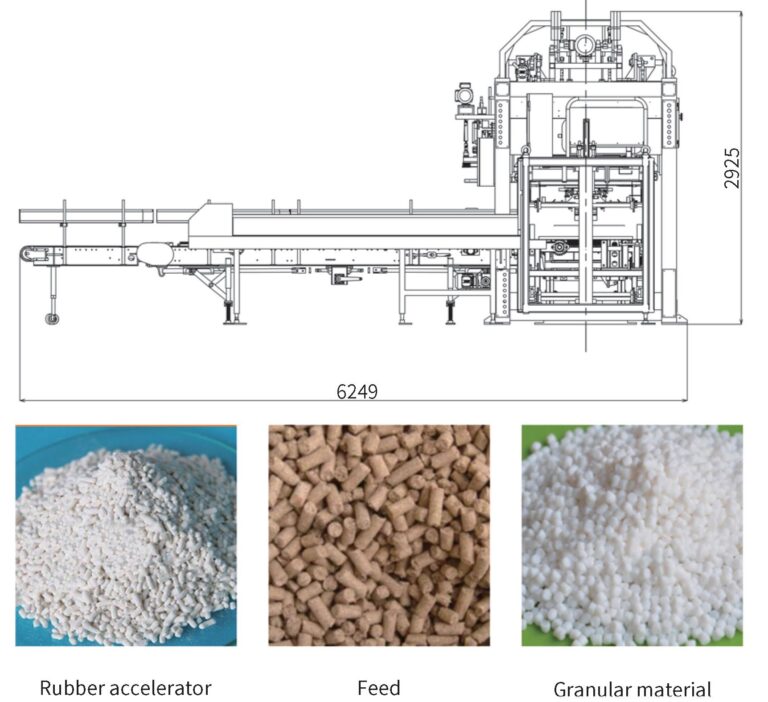

✔Machine dimensions: 6250×4490×3000MM (include conveyor length)

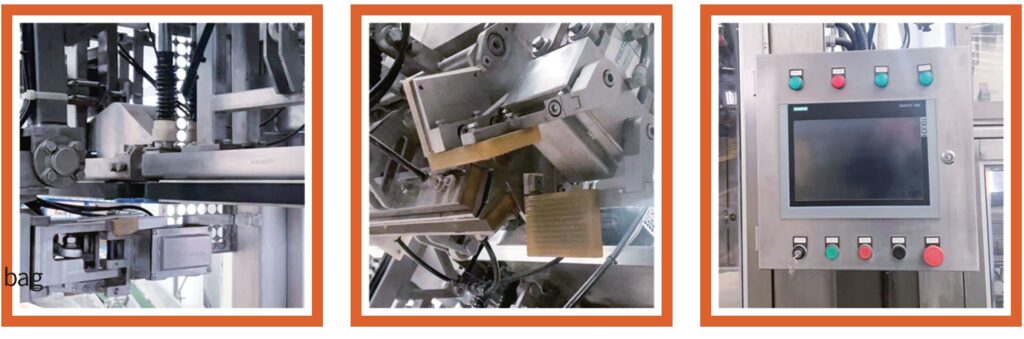

✔Multi-row design for bag magazine, 300 empty bag storage. Meet high capacity working condition.
✔Chain mechanism seperate empty bag, greatly improve the reliavility of the bag supply.
✔Servo motor control bag placer and bag holding, 2 independent swing arms complete the 2 actions, greatly improve packing speed.
✔All joints installed high quality bearing extend ma-chine service life.
